BES Machine Shop Services
| • Balancing • Crank Grinding • Engine Dyno | • Flow Bench • Head Porting • Sheet Metal Intake Fabrication |
|---|---|
| Line bore block standard: | $330 |
| Line bore block & add steel caps splayed: | $95/hour |
| Magnaflux block: | $50 |
| lnstall cylinder sleeve: | $225 plus price of sleeve |
Do I need to line bore an engine block?
You shouldn’t need an align bore unless the block had a spun bearing or had a cap or all the caps changed. If it’s a minor size deal it should be align honed to finish size, not align bored. Align boring moves the crank up in the block changing the deck height and timing chain fit.
What does it mean to line bore an engine block?

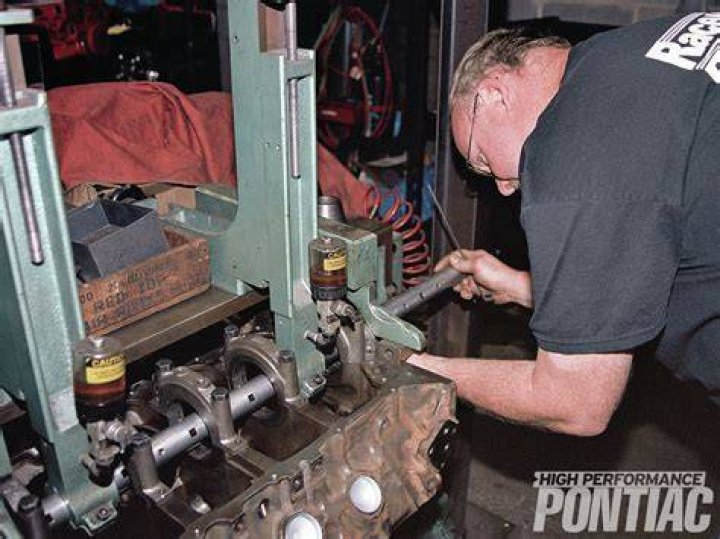

Line boring — sometimes called “align” boring — is an engine machining process that establishes perfectly straight bores for crankshaft and camshaft housings (also known as tunnels or saddles). It is the most essential step in “blue-printing” an engine block.
What is a line bore?
Line boring is essentially enlarging a hole that has already been cast, making the centerlines of two or more bores collinear. Collinear bores appear in several large machine parts such as engine blocks, gearboxes, presses and turbines.
Is line boring necessary?
Line boring, which can also be called align boring, is a term used to describe an engine machining process. When it comes to any of the steps in this process, line boring is perhaps the most essential step in the entire blueprinting process for an engine block. …
How much does it cost to bore a 350 to 383?
The machine work is usually in the $250~300 range for bore & hone to size ( including cam bearing install if desired). Bottom edges of block may need light relieving to clear rod bolts.
What is the process of line boring?
Line boring, which can also be called align boring, is a term used to describe an engine machining process. The task involved here is to create perfectly straight and aligned bores. These are used for the camshaft housing, which is also known as the saddles and tunnels, as well as the crankshaft.
What must be done when correcting a main bore alignment issue?
The cure is to check the alignment of the bores and the straightness of the crankshaft (one or both may be off). A bent crank should be straightened or replaced. If the bores are off, the main caps can be cut down so the bores can be bored or honed to restore alignment and size.
What is the purpose of line boring?
Do I need to line bore my Block?
There are three basic reasons for line boring the main bearing and cam bearing bores in engine blocks. One is to restore worn, out-of-round or damaged bores. If an engine overheats or loses oil pressure, one or more bearings on the crankshaft or camshaft may seize and spin.
How does line boring work?
Line boring also occurs when a machines bores must be restored to their original centerlines, or the machine won’t work properly. When this happens, engineers will create repair sleeves to fit into the bore rather than attempting to widen the other bores to match the damaged bore.
What is a Y block engine?
The Y-block engine is a family of overhead valve V8 automobile engines produced by Ford Motor Company. The engine is known for its deep skirting, which causes the engine block to resemble a Y, whence it gets its name.
