The enhanced entity–relationship (EER) model (or extended entity–relationship model) in computer science is a high-level or conceptual data model incorporating extensions to the original entity–relationship (ER) model, used in the design of databases.
What is the difference between ERM and ERD?
An ERD is a conceptual model. It defines the high level entities and their relationships with one another. An ERM is an implementation model. With the ERM, you should have everything spelled out in your ERM that’s needed to directly implement the model in the database.
What do you mean by ER model?
entity–relationship model
An entity–relationship model (or ER model) describes interrelated things of interest in a specific domain of knowledge. A basic ER model is composed of entity types (which classify the things of interest) and specifies relationships that can exist between entities (instances of those entity types).
How do you draw EER?
If it is an EER diagram you have to add a few to your diagram….Now let’s see how to draw EER diagrams.
- As in drawing ER diagrams first, we have to identify all entities.
- Then you have to identify relationships between entities and mark them.
- Add attributes for entities.
- Mark the cardinalities and participation.
What is the use of EER diagram?
Enhanced entity-relationship (EER) diagrams are basically an expanded upon version of ER diagrams. EER models are helpful tools for designing databases with high-level models. With their enhanced features, you can plan databases more thoroughly by delving into the properties and constraints with more precision.
What is the main concept of EER?
The Extended Entity-Relationship (EER) model is a conceptual (or semantic) data model, capable of describing the data requirements for a new information system in a direct and easy to understand graphical notation. conceptual schema, using the EER model using the EER model.
What is the relationship between ERM and ERD?
The result of modeling using the ERM is graphically represented as an entity relationship diagram (ERD). Thus, an ERD represents the conceptual structure of a problem domain being modeled. ERDs are widely used in database design and systems analysis to capture requirements of a system or a problem domain.
What is ER model explain with example?
Entity Relationship Model (ER Modeling) is a graphical approach to database design. It is a high-level data model that defines data elements and their relationship for a specified software system. For example, each employee of an organization is a separate entity.
What is Union in EER diagram?

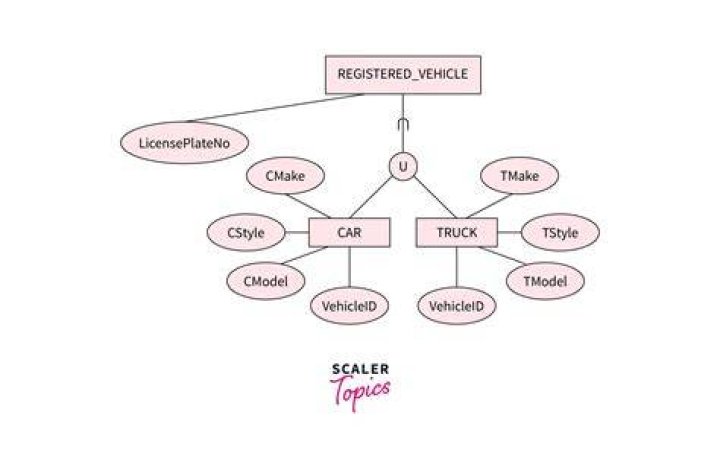

For example, if an organization has an owner, and if the owner can be a person, a company, or a bank, then it is a union of entities, if they are separate “tables”.
Why do we need EER?
What’s the difference between an ER and an EER diagram?
The key difference between ER and EER diagram is that the ER diagram is a visual representation of data based on ER model, and it describes how entities are related to each other in the database. EER diagram is a visual representation of data, based on EER model that is an extension of the original entity-relationship (ER) model.
What’s the difference between EER and enhanced ERD?
EER is a high-level data model that incorporates the extensions to the original ER model. Enhanced ERD are high level models that represent the requirements and complexities of complex database. In addition to ER model concepts EE-R includes − Subclasses and Super classes.
Which is closer to a real database EER or ER?
EER model is closer to what real database look like. So every box is actually table. I assume the accepted answer is right too, but in my opinion (havent read this anywhere I just think it is this way) EER was created to help people design databases even more then the basic relational algebra.
What is an extended entity relationship ( EER ) model?
Extended Entity-Relationship (EE-R) Model. EER is a high-level data model that incorporates the extensions to the original ER model. Enhanced ERD are high level models that represent the requirements and complexities of complex database. Subclasses and Super classes.
