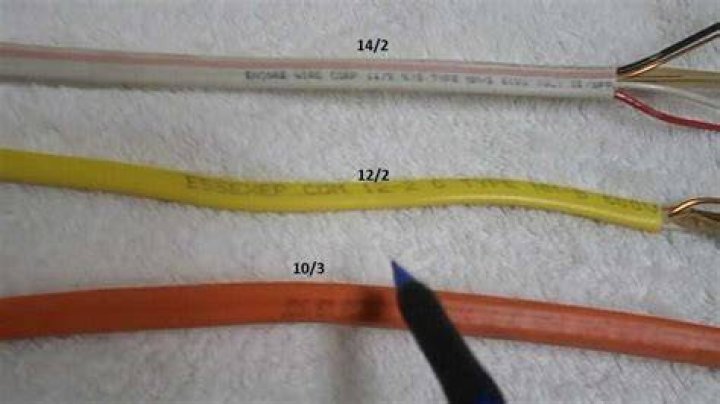

In the case of 10/2 it’s a #10 hot (insulated black), #10 neutral (insulated white) and #10 ground (either bare or insulated green). In the case of 10/3 it’s two #10 hots (insulated black and red), one #10 neutral (insulated white) and one #10 ground (bare or insulated green).
How many outlets can you put on a 14 3 wire?
14–3 contains 4 wires: one ground, one neutral and two hot wires (one black and one red). Fred is correct that a 14–3 wire should be used for what is called a three way switch, but it can be used in several other places as well.
How big of a wire do you need for a clothes dryer?
The minimum recommended wire size for clothes dryer circuits is 10 gauge. However, amperage decreases over distance, so appliance manufacturers advise a larger wire gauge for circuits that extend beyond a distance from their source.
How many amps does an electric dryer need?
An electric dryer cable may contain three or four solid copper wires. Electric dryers commonly use from 20 to 30 amps of power. An amp represents a unit of electric current. The number 10-gauge copper wire exists as the only gauge used for devices that must have a maximum of 30 amps.
How big of a breaker do I need for a 220V dryer?
What size breaker do I need for 220v dryer? In a dedicated circuit for a dryer , for example, the normal size of the circuit would be 30 amps. 30 amps requires a minimum of #10 copper or #8 alu. With this wire size , the breaker must not be larger than 30 amps.
Can a 4 wire dryer be converted to 3 wire?
In that case, you’ll have to do the very simple procedure of converting a 4-wire dryer to a 3-wire setup. Conversion of these appliances in the U.S. is prohibited by the NEC (National Electric Code). The receptacle and wiring should be modernized to a 4 conductor arrangement instead. Verify the electrical requirements of the dryer.
