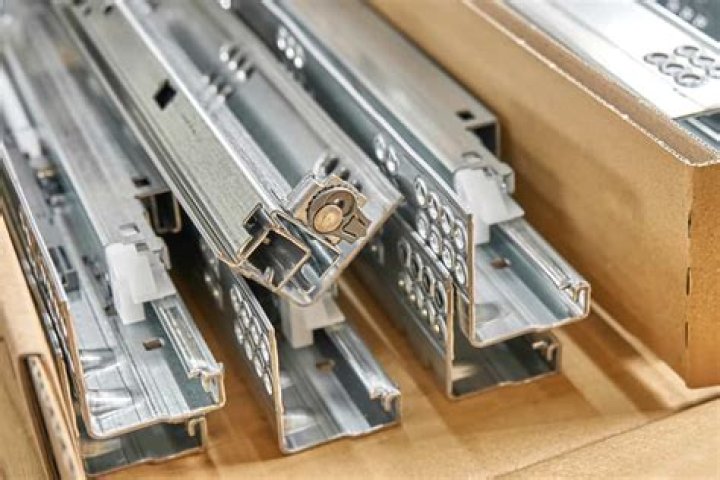

The 563H is for drawers with sides that are 5/8″ thick or less. The 563F is for drawer box sides that are up to 3/4″ thick. Drawer side thickness.
What are the easiest drawer slides to install?
Mounting location: Side mounted drawer slides are the most popular and easiest to install. Center mount and undermount are also options.
How much space do you need for drawer slides?
Most side-mount slides require 1/2” to 17/32” of clearance on each side of a drawer. That means each drawer should be 1” to 1-1/16” smaller than the opening to fit properly.
Are undermount drawer slides easy to install?
Undermount drawer slides are totally concealed – no clunky metal to detract from the beauty of your wooden drawers. It’s easy to install undermount drawer slides using the Rockler JIG IT® Undermount Drilling Guide with Undermount Drawer Slide Jig.
How much space is needed for undermount drawer slides?
Undermount slides are ideal when horizontal space is limited because they typically only require 3/16″ to 1/4″ of space per slide. The other thing to note about under mount slides is that they require ½” of clearance above and below the drawer in the cabinet opening.
How to install Blum tandem and Blumotion drawers?
Cut one board for each drawer slide height. Install the left slide, put the board on the other side of the cabinet and install the right slide. This ensures that each side is in exactly the same location and makes it easy to install multiple cabinets with drawers in the exact same spot. Start with the top drawer slide set and move down.
Where do you put the slides on a Blum cabinet?
After you’ve installed the top slide on each side of the cabinet, you can either re-use the scrap slide supports in any other cabinets with drawers at the same height, or cut them down for the next drawer, as shown in the next picture. The slides should be just above the face frame rail, if there is one.
How to install Blum tandem slides with 2 jigs?
How to Install Blum Tandem Slides with 2 Jigs. Here’s the depth setting jig in action: Simply hold it against the face frame at the side of the cabinet so that the slide is inset by the desired amount (in this illustration, where the drawer faces were full-overlay, the slides were inset 4 mm).
Can a Blum tandem slide be used in a pantry?
However, this does not impact our recommendations. Blum Tandem slides are a fabulous innovation for built-in cabinetry with drawers and pantry pull-outs. They’re smooth, silent, invisible and they come with a little person inside who pulls the drawer shut for you.
