White is always neutral. Furthermore, which outlet prong is positive? The high voltage (about 120 volts effective, 60 Hz AC) is supplied to the smaller prong of the standard polarized U.S. receptacle. It is commonly called the “hot wire”.
What color is neutral on a plug?
The USA have their own wiring colours for electrical circuits, black, red, and blue are used for 208 VAC three-phase; brown, orange and yellow are used for 480 VAC….Wiring Colours | Electrical Wire Colour Coding Standards.
| Region | USA |
|---|---|
| Earth (E) | Green |
| Neutral (N) | White |
| Line 1 (L1) | Black |
| Line 2 (L2) | Red |
Which is the hot wire on a 3 prong plug?
black
The hot wire is black. As soon as you put the plug into the receptacle, it will start generating electricity. The return wire is also known as the neutral wire.
How do I know which wire is hot and neutral?
know what each color of wire does in the circuit
- The black wire is the “hot” wire, which carries the electricity from the breaker panel into the switch or light source.
- The white wire is the “neutral” wire, which takes any unused electricity and current and sends them back to the breaker panel.
What is the purpose of neutral wire?
Neutral wire carries the circuit back to the original power source. More specifically, neutral wire brings the circuit to a ground or busbar usually connected at the electrical panel. This gives currents circulation through your electrical system, which allows electricity to be fully utilized.
Will an outlet work without a neutral?
If there’s an open neutral, the outlets won’t work, but they will still be energized. Use a plug-in circuit tester to check for an open hot or open neutral. An outlet or light switch with an open ground will still function, but because it lacks a safe path to earth, that device could give you a shock.
Which prong on plug is hot wire?
As you can see, the neutral and hot wires are connected to the two vertical prongs at the top of the receptacle (neutral on the left, hot on the right) and the ground wire is connected to the round prong at the bottom of the receptacle.
Where does the neutral wire go in a polarized plug?
In a standard 15 or 20 amp receptacle (plug), with the ground in the bottom position, the neutral wire goes to the left side of the receptacle as you look at the front of it. The hot wire goes on the right side.

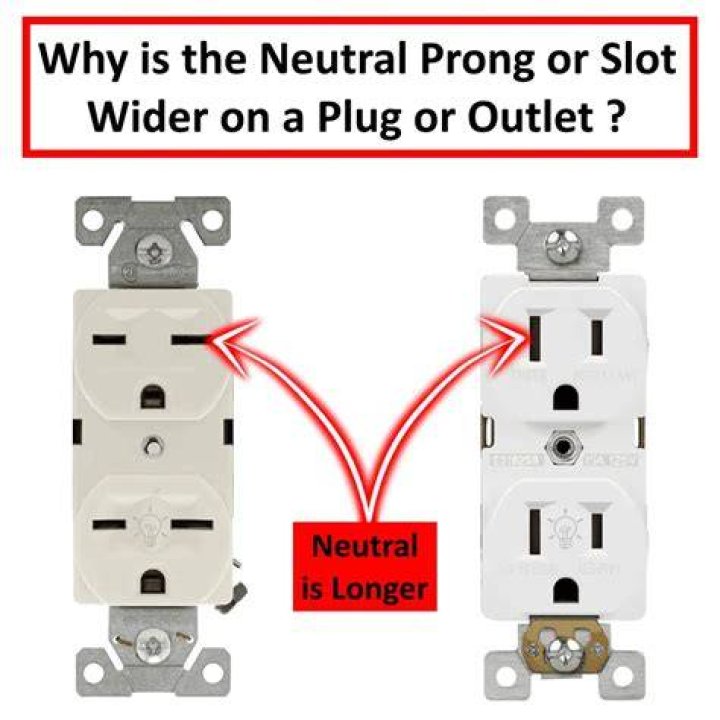

Is the Big prong on a plug positive or negative?
Click to see full answer. In this way, is the big prong on a plug positive? Look at the Plug On cords of this type, the larger prong connects to the neutral wire. Some three-prong plugs are also polarized, and when they are, the same rule applies: the larger prong connects to neutral. White is always neutral.
As you can see, the neutral and hot wires are connected to the two vertical prongs at the top of the receptacle (neutral on the left, hot on the right) and the ground wire is connected to the round prong at the bottom of the receptacle. Which prong is hot on a 3 prong plug?
Is it bad to wire a new plug?
Wiring a new plug isn’t difficult, but it’s important to get the hot and neutral wires connected to the proper prongs. The danger isn’t fire. The worry is that a miswired plug poses a fairly serious shock hazard. The key is to make sure you connect the wires to the proper terminals in the plug.
