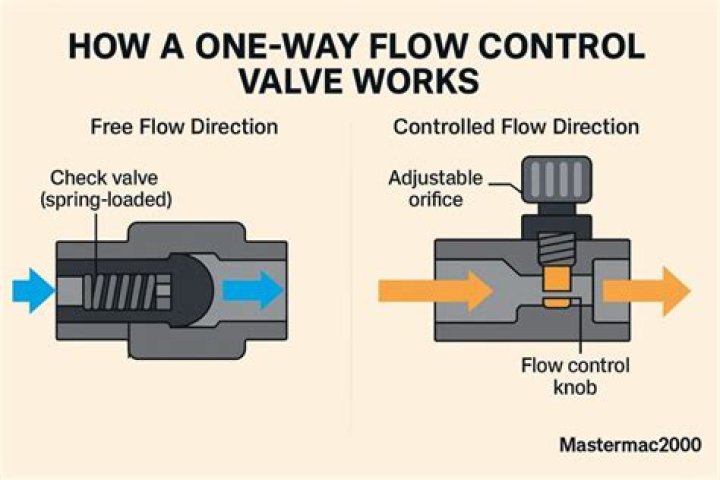

An arrow or the symbol for any type of check valve (a fluidic/pneumatic logic symbol) on the outside of the body indicates flow direction. In this image, flow is from top to bottom.
Which way should a check valve face?
They come with an arrow or another mark to indicate which direction to place the valve in the line. The arrow should point in the direction of the airflow. When in doubt, blow through the check valve to verify which direction air will flow. Always keep extra check valves on hand, if one fails.
Can you put a check valve in backwards?
Check valves need to be installed in accordance to their inlet and outlet, which is often shown as an arrow on the valve housing. As they only allow flow in one direction, if they are installed backwards, they will not work properly.
What does backflow preventer look like?
Double check backflow preventers consist of two check valves, four test ports, and two shut-offs and are commonly found in green rectangular irrigation boxes at ground level. These are also occasionally installed in crawl spaces, garages, and unfinished basements.
How do I know if I have a check valve?
Symptoms of a Failing Check Valve For example, failing check valves will start to vibrate and even lose some internal parts when problems begin to arise. Other symptoms of check valve failure include reverse flow and excessive component wear and damage. Check valves will also emit noises as they start to break down.
What does it mean if the valve has an arrow on it?
Post Reply. If the valve has an arrow on it, then it does matter. If it is a gate or globe valve, you in the OFF position, you have pressure on the wrong side of the gate or washer. In a typical residential system, the issue is more philosophical than a real issue.
Is the arrow on the isolation valve the right way round?
I’ve just noticed that I fitted it with the arrow in the wrong direction. The arrow points down to the kitchen, against the flow. Given that this valve is fully open for 99.99% of the time, is there anything to worry about? As I understand it, fitting an isolation valve the wrong way round may affect how efficient it is when closed.
Which is the correct direction to shut off a valve?
But, if you are using the valve on something that doesn’t require the drain, you should be okay. Next time, check the arrow! If no arrow, the flow should go against the washer side of the stem. Or, the pressure side should not be on the side of the stem.
Which is way does the airflow arrow point on my?
The easiest way to think about it is that the arrow is supposed to flow in the same direction as the arrow. For example, if you have a ceiling return or a wall return, the arrow should point towards the unit (or away from you as you install the filter).
